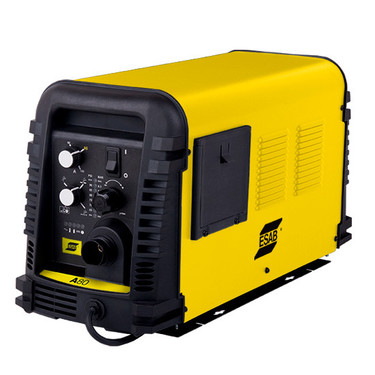

A-Series Power Supply

The A-Series systems are based on an industrial proven platform. The A-Series offers standard features to meet the needs of many automated applications. With all the advantages of 1Torch and proven systems reliability, the automated A-Series delivers the best in productivity, precision and performance.

Request A Quote

Highlights

All units have 80% duty cycle
Superior cut quality up to 120 A
Lightweight and compact design
Durable in the toughest environments
Serial interface standard

Process

Plasma Cutting

‍

A80	A120
Input Ratings	380-400 V, 3 Φ, 50/60 Hz	380-400 V, 3 Φ, 50/60 Hz
Duty Cycle	80 A @ 80 % % welding duty cycle 70 A @ 100 % % welding duty cycle	120 A @ 80 % % welding duty cycle 100 A @ 100 % % welding duty cycle
Recommended Generator	12 kW	15.4 kW
Open Circuit VDC High	260 VDC	260 VDC
Dimensions, L x W x H	660 x 248 x 343 mm	660 x 248 x 343 mm
Weight	28.6 kg	28.6 kg

Cutting specification
	A80	A120
Production Pierce	12 mm	20 mm
Maximum Pierce	20 mm	25 mm
Edge Start	30 mm	40 mm

‍

Description	Product number
ESAB A120 Plasma 400 V, 3 ph CE	0559317344
ESAB A80 Plasma 400 V, 3 ph CE	0559313344
Crossbow Plasma Kit A120 400 V, 3 ph CE	0558102358
Crossbow Plasma Kit A80 400 V, 3 ph CE	0558102353
ESAB A80 Plasma 600 V, 3 Φ	0559313345
ESAB A120 Plasma 230 V, 1 Φ	0559317341
ESAB A120 Plasma 600 V, 3 Φ	0559317345
ESAB A120 Plasma 480 V, 3 Φ	0559317342
ESAB A80 Plasma 230 V, 1 Φ	0559313341
ESAB A80 Plasma 480 V, 3 Φ	0559313342
Crossbow Plasma Kit A80 480 V, 3 Φ	0558102351
Crossbow Plasma Kit A120 600 V, 3 Φ	0558102359
Crossbow Plasma Kit A80 600 V, 3 Φ	0558102354
Crossbow Plasma Kit A120 480 V, 3 Φ	0558102356
Crossbow Plasma Kit A120 208/230 V, 1 Φ	0558102355
Crossbow Plasma Kit A80 208/230 V, 1 Φ	0558102350

Description	Product number
A80/A120 CNC cable, 30.5 m (100 ft)	9-8316
A80/A120 CNC cable, 10.6 m	9-1010
Two stage air filter kit	9-9387
Spare parts kit 80 A	5-0123
SL100 SV with ATC, 180° Automation, 15.2 m (50 ft)	7-4003
A80/A120 CNC cable, 7.6 m (25 ft)	9-1008
SL100 SV with ATC, 180° Automation, 30.5 m (100 ft)	7-4005
Hand pendant extension, 7.6 m (25 ft)	7-7744
SL100 SV with ATC, 180° Automation, 7.6 m (25 ft)	7-4001
SL100 SV with ATC, 180° Automation, 10.6 m (35 ft)	7-4002
Spare parts kit 40 A	5-0079
A80/A120 CNC cable, 23 m	9-8315
Spare parts kit 60 A	5-0122
SL100 SV with ATC, 180° Automation, 23 m (75 ft)	7-4004
Remote pendant control, 6.1 m (20 ft)	7-3460
Single stage air filter kit	7-7507
Spare parts kit 120 A	5-0175
PLUS Adapter Sleeve	9-8396
PLUS Electrode	9-8390
PLUS Gas Distributor	9-8392
PLUS Tip 70A	9-8397
PLUS Tip 110A	9-8391
PLUS Cup Shield	9-8393
PLUS Shield Cap 70A	9-8398
PLUS Shield Cap 110A Vented	9-8395
PLUS Shield Cap 110A	9-8394
Tip – 40A	9-8386
Shield Cap – 40A	9-8387
