Checkmaster 600R
The Checkmaster 600R functions as a resistive load bank tailored for simulating arc welding, compliant with IEC 60974-14 and ISO 17662 standards. Equippable with calibrated measurement instruments, it's ideal for calibration/validation and testing welding systems. Automated load switching enhances user safety, compatible with welding power sources from 150A to 500A, covering various processes like GMAW, GTAW, SAW, and SMAW.

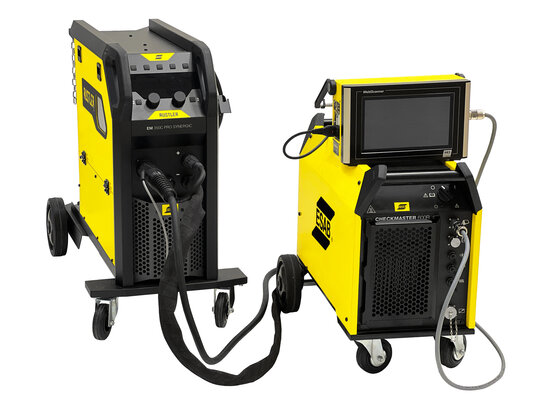

When linked with the ESAB WeldScanner, minimal user intervention is needed for calibration/validation, leading to time efficiency. Integration with the WeldScanner allows parallel operation of two Checkmaster 600R units, automatically switching resistive loads simultaneously. This streamlines large-scale measurement tasks and supports calibrations up to 1200A.
Applications
- Repair and Maintenance of Welding Equipment
- Calibration, Validation and Consistency Testing
- Workshop and Field Repair
Highlights
- Unique design facilitates faster and easier calibrations and validations
- DC readout ranging from 0 to 600 Amps
- DC voltage readout from 0 to 40 Volts
- AC current range from 0 to 420 Amps (600 Amps peak) with true RMS for sinusoidal waveforms
- AC voltage readout from 0 to 40 Volts (60 V peak) with true RMS for sinusoidal waveforms
- Equipped with gas flow socket (GM30L series), wire feed speed socket (DV25 series), and traversal speed socket
- Enables calibration and validation to meet IEC 60974-14 and ISO17662 standards, aligning with ISO 9001-based Quality Systems requirements
- Features extra stable resistive load elements and GTAW high-frequency ignition proof
- Calibration is traceable to national standards
- Option for trolley and wheel kit for added mobility
Process
- GMAW (MIG/MAG)
- GTAW (TIG)
- SAW - Submerged Arc Welding
- SMAW/MMA (Stick)
