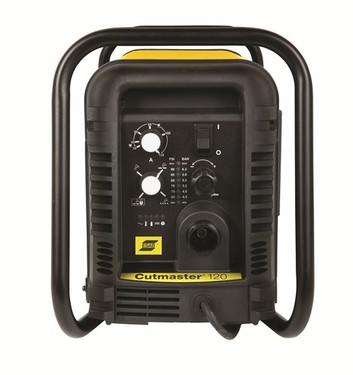

ESAB Cutmaster 120

The ESAB Cutmaster 120, weighing only 28 kg and provides 120 amps of cutting power for a 40mm (1-1/2”) recommended cut and 55mm (2-1/8”) maximum cut. This compact unit, like all other Cutmasters, comes standard with the 1Torch® providing you with the well known comfort and reliability famous throughout the industry. Packages include power source, SL100 1Torch, spare parts kit, air filter/regulator, work cable and clamp and power cable.

Request A Quote

Highlights

True Cut^TM– 40mm 1-1/2”)
Quick Disconnect Torch for easy maintenance or machine torch conversion
Auto-Restrike on mesh or expanded metal for maximum productivity
True-Guard^TM roll bar for ultimate protection
TD Surelok^® technology for better quality cuts and parts life

Process

Specifications
Recommended Generator	15.4 kW
Input Volts	400 V, 3 Φ, 50/60 Hz
Duty Cycle	120 A @ 40 % % welding duty cycle
Input Voltage	32 A @ 400 V / 400 V
Gas Pressure	5.2 bar
Gas Flow	212 l/min
Pierces	25 mm
Torch Air Pressure	5.2 bar
Torch Air Consumption	212 l/min
Dimensions, L x W x H	762 x 305 x 381 mm
Weight	28.1 kg
Recommended Cut	40 mm
Maximum Cut	55 mm
Cutting Guide Kit (Deluxe)	7-8910
Leather Lead Cover 15.2 m (50 ft)	9-1260
Leather Lead Covers 15.2 m	9-1280

Description	Product number
ESAB Cutmaster 120 6.1m SL100 400V 3ph CE	0559119304
ESAB Cutmaster 120 15.2m SL100 400V 3ph CE	0559119314

Description	Product number
Electrode, Standard, 5/pack, SL60/SL100	9-8215
Start Cartridge, SL60/SL100	9-8213
Start Cartridge, Heavy Duty, SL60/SL100	9-8277
Cutting/Drag Tip, 60A, 5/pack, SL60/SL100	9-8252
Tip – Standoff (120A)	9-8253
Gouging Tip B (50–100 A), 5/pack, SL60/SL100	9-8226
Gouging Tip C (60–120 A), 5/pack, SL60/SL100	9-8227
Gouging Tip D (60–120 A), 5/pack, SL60/SL100	9-8228
Tip – Gouging E (120A)	9-8254
Shield Cup, Standard, for exposed tip, SL60/SL100	9-8218
Shield Cup, Max Life, for shielded tip, SL60/SL100	9-8237
Shield Cap (Drag only)	9-8258
Deflector	9-8243
Shield Cap Gouging	9-8241
Cutting Guide Kit (Deluxe)	7-8910
Circle Cutting Guide Kit	7-3291
Cutting Guide Kit	7-7501
Straight Line Cutting Guide	7-8911
Stand off cutting guide 40A	9-8251
Standoff Cutting Guide, 60–100 A, SL60/SL100	9-8281
Trigger guard guide	9-8420
Leather Lead Cover 15.2 m (50 ft)	9-1260
Leather Lead Covers 15.2 m	9-1280
Remote pendant control, 6.1 m (20 ft)	7-3460
Hand pendant extension, 7.6 m (25 ft)	7-7744
Lead Extension, 4.6 m	7-7544
Lead Extension, 7.6 m	7-7545
Lead Extension, 15.2 m	7-7552
Single stage air filter kit	7-7507
Two stage air filter kit	9-9387
Multi-Purpose Cart	7-8888
ATC® 1Torch® SL 100 75° 6.1M	7-5206
ATC® 1Torch® SL 100 90° 6.1M	7-5263

Factsheets

ESAB Cutmaster 120 (EN)
