ESAB Cutmaster 50+

Cutmaster 50+ is the perfect combination of power and portability for hand-held plasma cutting machines. Plus means more, so we’ve added a user-friendly 10.9 cm TFT LCD screen and upgraded features that give you even more control and flexibility to master any pierce and cut up to 25 mm. Together with the SL60 1Torch, it all adds up to the total plasma cutting package.Pierce Capacity: 16 mmCutting Capacity: 25 mmMaximum Severance: 32 mmResults may vary based on material used.

‍

Request A Quote

Highlights

Portable and durable with three handles and lightweight, industrial all-weather housing

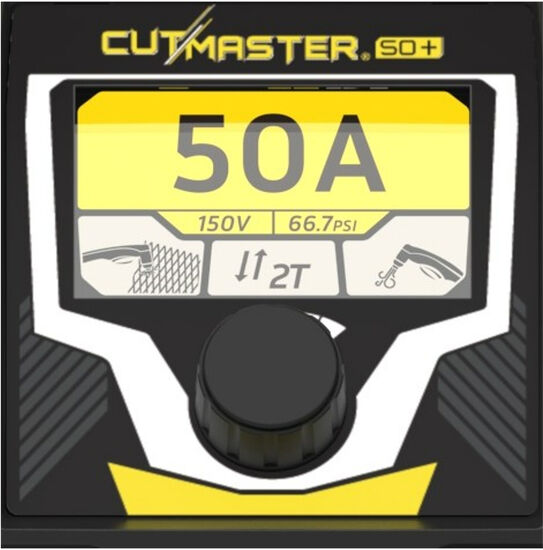

Bright 10.9 cm TFT LCD display with glove-friendly adjustment knob simplifies use and provides greater control and flexibility
Input 400 V, 3-phase power
Comes with industrial SL60 1Torch featuring 2T/4T function, safety trigger lock, and double-tap trigger to conserve bottled air
Switch between normal and grate cutting modes
Compatible with all ATC torch connections
Includes a complete package of general cutting and gouging consumables for most applications
Post-cut air purge to expand consumable life
Industry leading 3-year warranty on power supply and 1-year warranty on torch and leads
CNC functionality with pre-installed 14 pin CPC receptacle and voltage divider which allows:1. Start/Stop
2. OK to Move
3. Divided arc voltage (ratio 20:1, 30:1, 40:1, 50:1, 80:1)

Process

Specifications
Amp Low - High	10 A - 50 A, Continuously adjustable
Recommended Generator	12+ kW
Input Volts	400 VAC, 3 Φ, 50/60 Hz
Duty Cycle	40 A @ 100 % % welding duty cycle 50 A @ 60 % % welding duty cycle
Operating Temperature	-10 – 50 °C
Gas Requirements	Compressed air: Clean, dry, oil-free per ISO 8573-1 Class 1.2.2 Compressed Nitrogen: 99.95% pureCompressed Nitrogen: 99.95% pure
Gas Pressure	6.2 –8.6 bar
Gas Flow	142 –235 l/min
Pierces	16 mm
Enclosure Class	IP23S
Certification	CE, UKCA
Dimensions, L x W x H	465 x 200 x 315 mm
Weight	16.5 kg
Maximum Cut	25 mm
Maximum Edge Start	32 mm

Description
ESAB Cutmaster 50+ Package, 3 Φ 400 V (16 A plug) CE/UKCA	0559150004

Description
Multi-Purpose Cart	7-8888
Circle Cutting Guide Kit	7-3291
SL100 Mechanised ATC 180° 15.2 m (50 ft)	7-5216
Ground Clamp Dinse 25 mm lead (10 mm² OKC) - 3 m	0700400909
Leather Lead Cover 15.2 m (50 ft)	9-1260
CNC Remote Cable 15.2 m (50 ft)	9-8312
SL100 Mechanised ATC 180° 7.6 m (25 ft)	7-5215
Straight Line Cutting Guide	7-8911
Leather Lead Cover 6.1 m (20 ft)	9-8313
Shoulder Strap	0445197880
SL60 1Torch and Lead 6.1 m (20 ft) 75° Head	7-5204
Cutting Guide Kit	7-7501
SL60 1Torch and Lead 15.2 m (50 ft) 75° Head	7-5205
Cutmaster MechPak, 50 ft (15.2 m)	7-7750
Cutmaster MechPak 7.6 m (25 ft)	7-7725
Cutting Guide Kit (Deluxe)	7-8910
Leather Lead Covers 15.2 m	9-1280
Single stage air filter kit	7-7507
Two stage air filter kit	9-9387

Instruction Manuals

ESAB Cutmaster® 50+, Cutmaster® 70+ (EN (GB))

Factsheets

ESAB Cutmaster 50+ (EN)

‍
