Precision 130 Plasma System

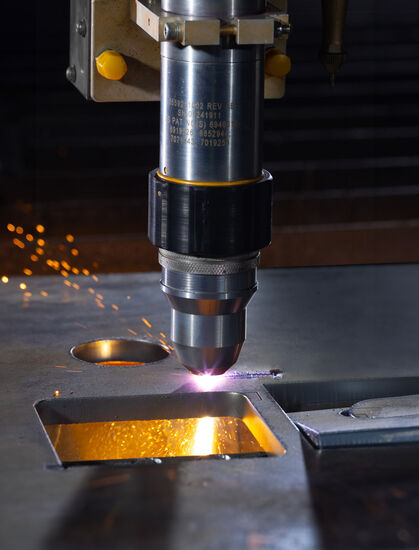

The Precision 130 High Definition Plasma System combines economic efficiency with uncompromising quality. This system, featuring a water-cooled torch and oxygen cutting, offers a cost-effective solution without sacrificing the premium features of a comprehensive high precision system. Unlock the advantages of top-notch performance at a competitive cost.

Request A Quote

Highlights

Achieve greater flexibility and savings on mild steel with the option to use air/air
Very easy and quick to install
Compact supply leads packages - also compatible with smaller air-cooled plasma cutting machines
Save thousands of dollars on consumables compared to air-cooled plasma systems, thanks to enhanced parts longevity

Process

Specifications
Input Ratings	480 V, 3 Φ, 50/60 Hz 400 V, 3 Φ, 50/60 Hz
Amps	41 A @ 400 V 34 A @ 480 V
Duty Cycle	130 A @ 100 % % welding duty cycle
Amp Low - High	30 A - 130 A
Recommended Generator	23.4 kW
VDC Out	180 VDC
Open Circuit VDC High	425 VDC
Certification	CE, CSA
Air Service Gas, Plasma	O2, Air, Ar-H2, N2@ up to 8.3 bar (120 psi)
Dimensions, L x W x H	762 x 560 x 864 mm
Weight	141 kg
Air Service Gas, Shielding	O2, N2 @ up to 8.3 bar (120 psi)

Cutting specification
	Mild Steel	Stainless Steel	Aluminium
Production Pierce	20 mm	15 mm	20 mm
Maximum Pierce	25 mm	20 mm	22 mm
Edge Start	40 mm	40 mm	40 mm

Cutting speed chart
Plate Thickness /Plate Thickness (imp)	Amps	Plasma/Shield	Cut Speed /Cut Speed (imp)
Mild Steel
1.5 mm	30 A	O2/O2	1600 mm/min
3 mm	30 A	O2/O2	991 mm/min
5 mm	50 A	O2/Air	250 mm/min
6 mm	70 A	O2/Air	2710 mm/min
6 mm	130 A	O2/Air	4064 mm/min
10 mm	130 A	O2/Air	2667 mm/min
12 mm	130 A	O2/Air	2160 mm/min
20 mm	130 A	O2/Air	1219 mm/min
6 mm	130 A	Air/Air	4000 mm/min
12 mm	130 A	Air/Air	2000 mm/min
Stainless Steel
1.5 mm	30 A	N2/H20	2800 mm/min
2.5 mm	50 A	N2/H20	3350 mm/min
6 mm	70 A	N2/H20	1490 mm/min
6 mm	130 A	N2/H20	2896 mm/min
10 mm	130 A	N2/H20	1575 mm/min
12 mm	130 A	N2/H20	1346 mm/min
20 mm	130 A	N2/H20	600 mm/min
20 mm	130 A	H35/N2	533 mm/min
Aluminium
1.5 mm	30 A	N2/H20	3210 mm/min
3 mm	50 A	N2/H20	1590 mm/min
6 mm	70 A	N2/H20	2060 mm/min
6 mm	130 A	N2/H20	2921 mm/min
10 mm	130 A	N2/H20	1600 mm/min
12 mm	130 A	N2/H20	1473 mm/min
20 mm	130 A	N2/H20	762 mm/min
20 mm	130 A	H35/N2	1350 mm/min
