Rebel™ EMP 215ic

The Rebel™ Series Welding Machines offer 120/230V flexibility and some of the most innovative welding technology available. A breakthrough design inspired by professional welders, the Rebel is a complete package to weld anything –mild steel, MIG aluminium, stainless steel –and go anywhere..

Request A Quote

Highlights

  • True multi-process performance for best-in-class MIG, Flux-cored, MMA, including challenging electrodes, and Lift TIG welding with Rebel EMP 215ic
  • Exclusive sMIG ("smart MIG") feature continuously learns and adapts to the operator’s welding technique to provide a stable arc and superior, repeatable welds; increases productivity for the experienced welder, and reduces training time for novice welders.
  • Innovative user interface with a large TFT display to provide a clear view of the weld parameters and settings, also from a distance. The display is loaded with exclusive features: on-demand availability of the user’s manual, listing of spare parts –all in multiple languages.
  • Unique, five-handle roll cage industrial design and unibody steel construction in a lightweight, highly portable unit; 3-year handle-to-handle warranty

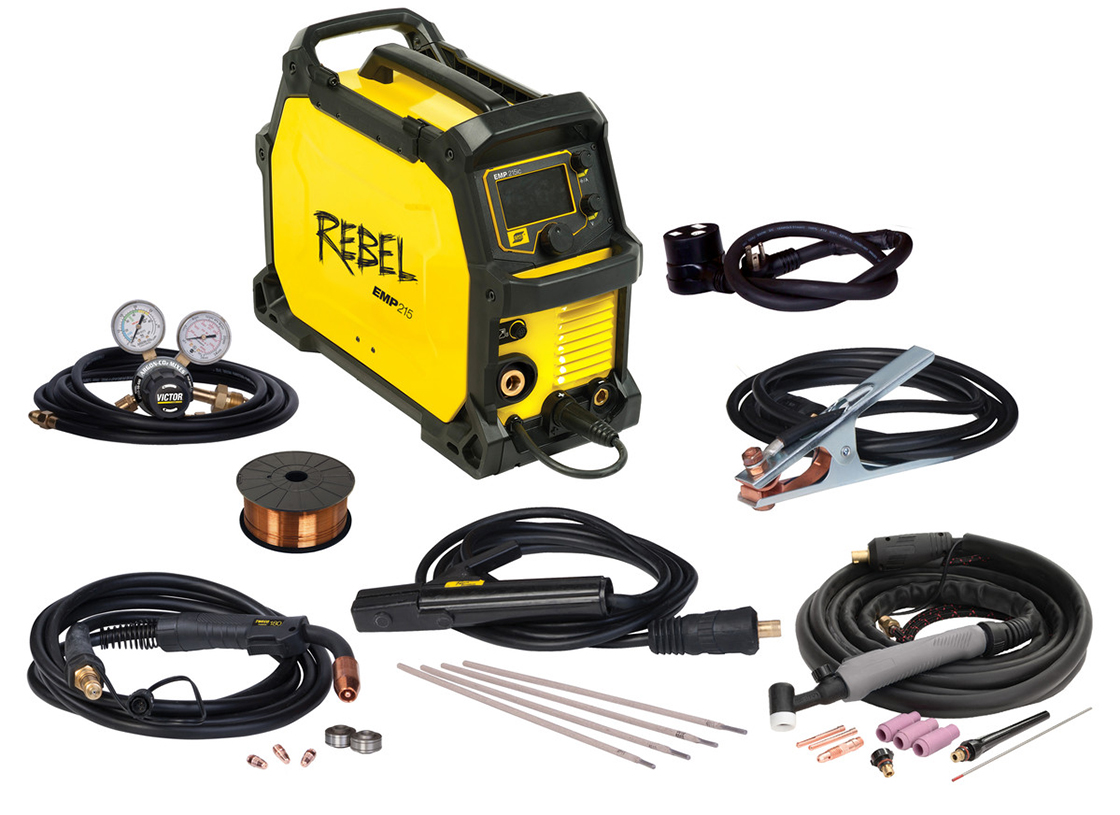

  • Rebel EMP 215ic comes ready-to-weld with professional-grade ESAB MXL 200 MIG torch with euro connector, electrode and return cable kits, 200 mm spool OK Aristorod12.50 0.8 mm wire, 4,5 m gas hose with quick connector, contact tips and drive rolls for 0.6 –1.0 mm wire.

Process

  • FCAW (Flux Core)
  • GMAW (MIG/MAG)
  • SMAW/MMA (Stick)
  • GTAW-DC (TIG DC)
  • GTAW (TIG)
  • Multi-Process
Specifications
Voltage 120/230 V , 1 Φ, 50/60 Hz
Max Output 240 A
MIG (GMAW) Welding Output 130 A20.5 V (120) @ 20 % Duty Cycle
205 A24.3 V (230) @ 25 % Duty Cycle
MMA (SMAW) Welding Output 90 A23.6 V (120) @ 40 % Duty Cycle
180 A27.2 V (230) @ 25 % Duty Cycle
TIG (GTAW) Welding Output 130 A15.2 V (120) @ 40 % Duty Cycle
180 A17.2 V (230) @ 30 % Duty Cycle
Setting Range
10.2-16 V (5-150 A)
20.6-24.4 V (16-110 A)
10.2-18 V (5-200 A)
14.75-25.5 V (15-230 A)
14.75-20.5 V (15-130 A)
20.6-27.4 V (16-185 A)
Current Range
230V
120V
5 - 240 A
5 - 150 A
90-270 V
10-26 V
0465720002
Wire Feed Information 1.5-12.1 m/min
Open Circuit Voltage 68 V
Use With Welding Material 9.5 mm (3/8 in.)
Wire Diameter (met)
Flux Cored
Mild Steel
Stainless Steel
Aluminium
0.8-1.2 mm
0.6-1.0 mm
0.8-1.0 mm
0.8-1.2 mm
Max Spool Diameter 100 & 200 mm
Supply Plug 230 V, Schuko 16A plug
MCableX 3 m 3x2,5 mm² H07RN-F
Rated kVA 7 kVA (230 V)
4.5 kVA (120 V)
Enclosure Class IP23S
Certification & Standards CSA: E60974-1-00
CE: IEC/EN 60974-1, 5, 7, 10, 12 & 13. RoHS
Dimensions, L x W x H
584 x 229 x 406 mm
Weight 20.6 kg
Description Product number
Rebel EMP 215ic for MIG/MMA/Lift TIG Package
Rebel EMP 215ic comes ready-to-weld with ESAB MXL 200 MIG torch
0700300985

MIG. Flux-Cored. TIG. Stick Applications. No Problem.

Rebel is the true multi-process, multi-voltage industrial welding machine. It also offers the most portable, mobile welding in its class, outperforming the competition, every time. Whether you’re in the shop or out in the field, you can crush the most demanding job with a Rebel. It’s why the rebellion just keeps growing.

Ready for Anything, Anywhere.

You don’t work your average job. As a result, you need to be ready for anything – any process, any power, any material, anywhere and anytime. With Rebel, you’ll get the high performance you need, everywhere you go, even in the most demanding environment. MIG, Flux-Cored, Stick – even those tricky 6010 rods – or TIG will be a breeze with a Rebel.

Necessary Toughness.

Working in harsh environments, you need equipment that’s as tough as you. With Rebel, you’ll get the sturdy, multi-handle roll cage, steel unibody construction, and IP23S-level protection – passing stringent tests and ensuring water and foreign particles can’t touch it. With Rebel, you’ll get anything but typical for those crazy tough environments you work in.

Next Level Technology.

Rebel is smart…really smart. In fact, with its sMIG (smartMIG) technology, it’s sure to impress even the toughest critics. There’s everything from basic mode, which is a set up for those less- experienced welders, as well as dynamic arc control for industry veterans. This mode constantly monitors welds and adapts, delivering the smooth, stable arc you need and the superior, repeatable welds you want.
