Rebel™ EMP 235ic
EMP 235ic –the next series of Rebel welding machines that offer TRUE multi-process performance in a portable/mobile package. When it comes to getting around and getting work done, Rebel EMP 235ic is second to none. It’s the most mobile welder in its class and has the power and performance to crush even the most demanding jobs.
Highlights
- True Multi-Process –excellent performance on MIG/MAG, TIG and MMA.
- Extremely user friendly and multilingual TFT-panel incorporating spare part lists and weld parameter guides for all processes.
- Unmatched Portability –weighing in at 28,6 kg with dual voltage capability and 4 handle roll cage.
- Power to Perform –capable of running any wire from 0,6 mm to 1,0 mm and also cored wires up to 1,2 mm on both 200 and 300 mm spools.
- Full MMA performance with electrodes up to 4 mm and excellent Lift TIG performance with adjustable pre/post gas flow and weld current ramp up/down.
- sMIGTechnology –innovative “smart-MIG” feature that dynamically monitors the arc characteristics ultimately adapting to your technique resulting in a smooth, stable arc. Set wire diameter, material and plate thickness and you are ready to weld.
- Two gas inlets, one for MIG and one for TIG where both can be connected simultaneously. Built in TIG gas solenoid valve on the front of the machine eliminating the need for a manual valve on the TIG torch.
Process
- GMAW (MIG/MAG)
- SMAW/MMA (Stick)
- FCAW (Flux Core)
- GTAW-DC (TIG DC)
- GTAW (TIG)
- Multi-Process
Two Purpose-Built Systems.
Rebel EMP 235ic
The bigger, badder Rebel EMP 235ic is the only true multi-process welder in its category, and it's ideal for applications that require MIG, gasless, and gas-shielded Flux-Cored wire, Stick, and TIG. And weighing in at only 53 pounds with an output rating of 235 A, it has a power-to-weight ratio that crushes the competition. With capability to weld the full range of .035 solid wire, you'll be blown away by its increased productivity and deposition rates.
This multi-process machine is packed with Rebel DNA, which is found in every Rebel machine. Features like sMIG technology (now extended to .045 solid wires), an industrial package that fits 12-inch spools, dual voltage capability, and a four-handle roll cage design all make Rebel 235 and its fellow Rebels rise above the rest.

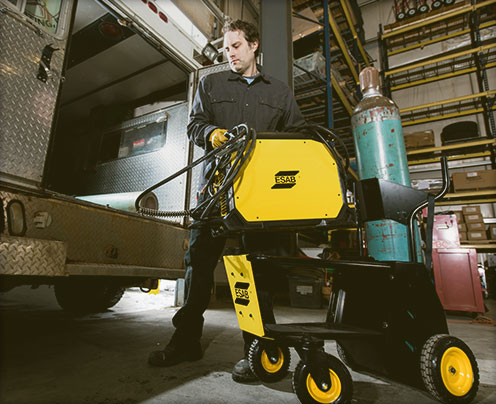

Unmatched Portability.
Rebel EMP 235ic goes where you go. And that's priceless in today's demanding industries. With four perfectly placed handles and the ability to detach the power source from its cart, you can tackle any job, anywhere, with dual voltage capability from 90 V to 270 V. From shop to field, the rugged unibody steel industrial housing gives you the confidence that Rebel 235 can handle even the most demanding environments.

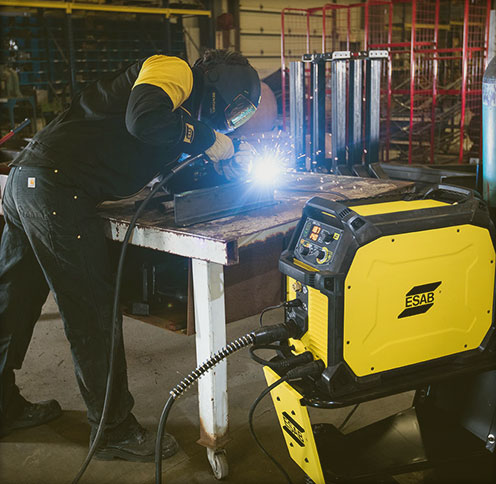

The Power To Perform.
When it comes to portable welders, small means weak, right? Dead wrong. Single-phase Rebel EMP 235ic is packed with the power to weld up to a half inch on mild steel, measuring in at 235 A at 40% duty cycle with a max output of 250 A/30 V.
Versatility That Can't Be Beat.
Your options are now open with the ability to weld a wide range of metal thicknesses and applications, including the full range of .035 in both short arc and spray arc transfer, up to .045 solid wires, and up to .052 cored wires. Plus, Rebel EMP 235ic can also weld Stick rods up to 5/32 in. and TIG rods up to 3/16 in.

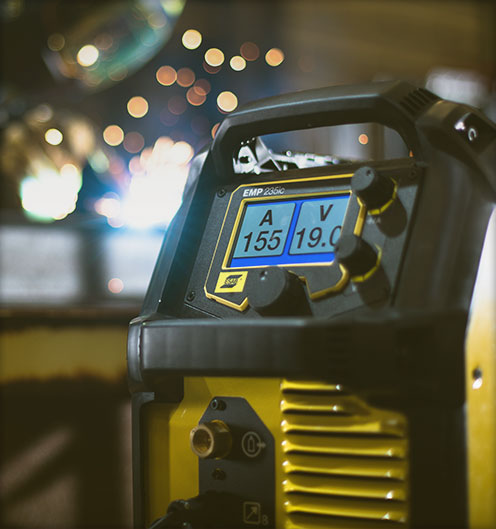

The Total Package.
It takes more than a machine to get up and welding. So when you buy a Rebel EMP 235ic, you can expect all the equipment you need to get going – right out of the box – and from some of the best names in the industry.
- Tweco Spray Master 250 MIG gun with 15 ft. (4.6 m) cable
- Tweco 200 A electrode holder with 13 ft. (4 m) cable
- Tweco 13 ft. (4 m) ground clamp with leads
- Victor argon flowgauge regulator with 12.5 ft. (3.8 m) gas hose
- 110 V adapter plug
- Atom Arc Acclaim 7018 sample pack Stick electrodes
- AristoRod 12.50 .035, 8 in., 11 lb. sample spool
Note: All contents listed are for Rebel EMP 235ic.
