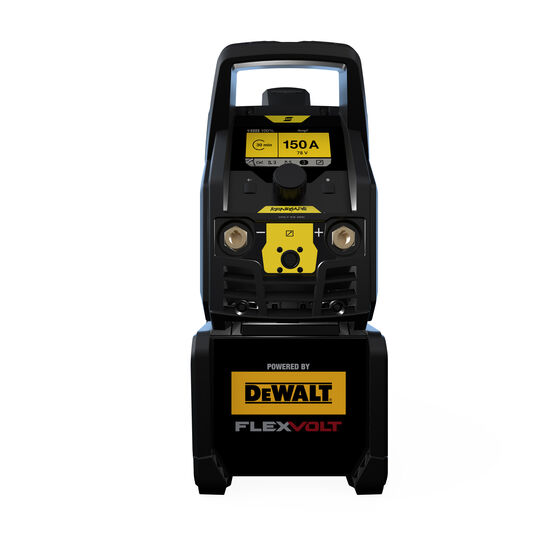

Renegade VOLT™ ES 200i

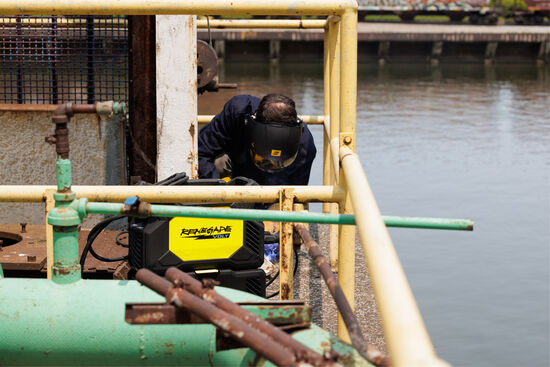

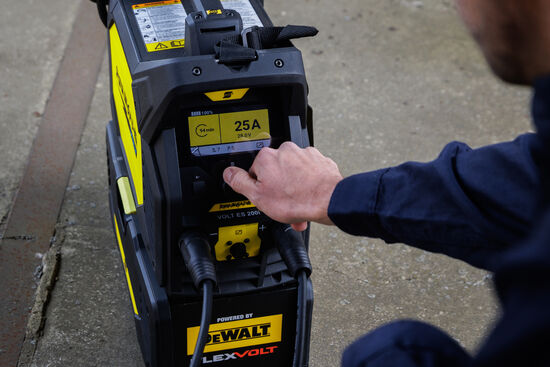

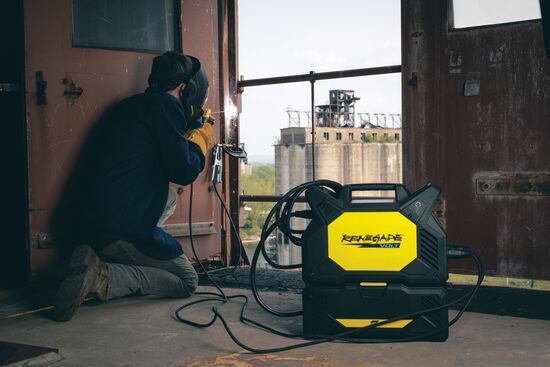

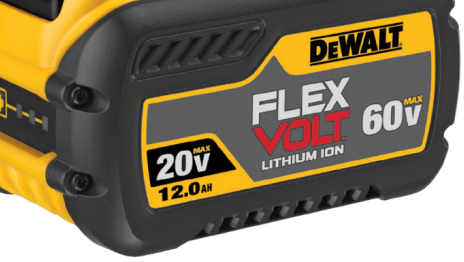

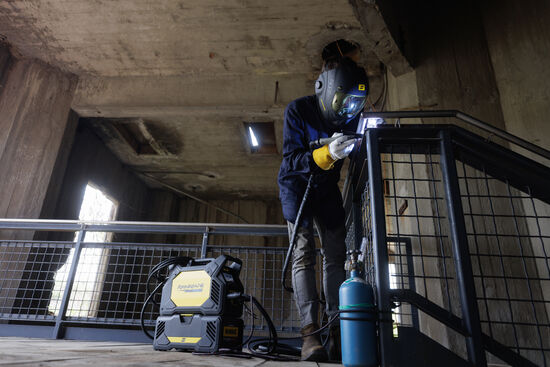

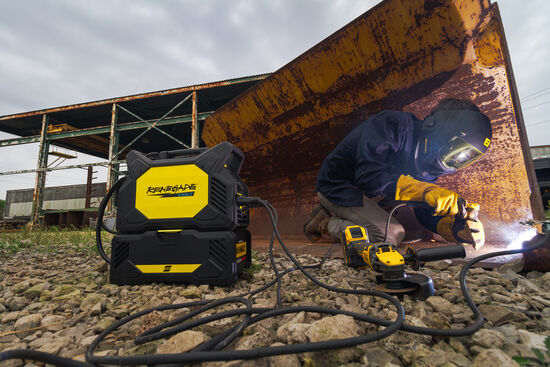

ESAB Renegade VOLT™ ES 200i is a portable, cordless battery powered, Stick (SMAW) and Live TIG (GTAW) welder with the versatility to operate in Battery, Mains, or AMP+ Hybrid Mode.This cordless welder runs on 6 Ah, 9 Ah, and 12 Ah DEWALT® FLEXVOLT® batteries. Renegade VOLT provides the power to burn up to 33 (E6013) electrodes on a single charge using four 12 Ah batteries, that are included in the package.*Renegade VOLT is a highly portable and powerful unit perfect for mobile welders operating in remote, offsite, or hard-to-reach locations without easy access to AC mains power.In AMP+ Hybrid Mode, Renegade VOLT supplements AC mains power with battery power to prevent nuisance trips on smaller breaker sizes (e.g., 10A, 16A) or to provide more output when welding on 120V input.Renegade VOLT features a rugged industrial design with durable, impact-resistant housing and multiple lift points for easy operation and transport in the field. The bright, intuitive color-screen user interface is designed for outdoor use, even in direct sunlight, and features a battery status display and remaining arc time calculator.This powerful welder offers the highest arc quality with special features that include hot start, arc force, memory storage, and cellulosic mode (6010) to optimize performance based on application or user preference.*based on standard operating conditions

Request A Quote

Highlights

  • 200 A output on AC mains (230V)
  • Up to 140 A output on battery power

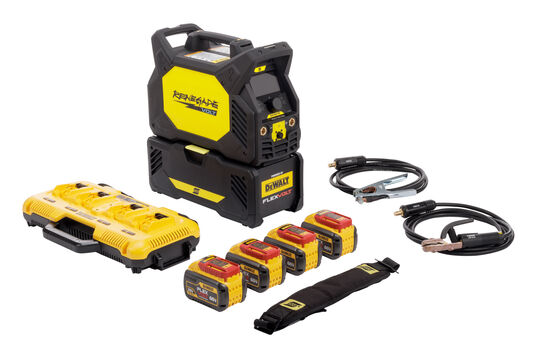

  • Includes (4) DEWALT FLEXVOLT 18 V/54 V max 12 Ah batteries
  • AMP+ Hybrid Mode for extra power
  • Lightweight and portable battery powered welder
  • Durable, impact-resistant housing
  • Sun-friendly, intuitive user interface
  • Memory storage for welding parameters

Process

  • SMAW/MMA (Stick)
  • GTAW (TIG)
  • GTAW-DC (TIG DC)
Specification
Ordering
Accessories
Documents
Features & Benefits
Specifications
Voltage 120/230 VAC 15 %, 1 Φ, 50/60 Hz
GTAW (AC) Welding Output 140 A15.6 V (120 V) @ 25 % Duty Cycle
90 A13.6 V (120 V) @ 60 % Duty Cycle
70 A12.8 V (120 V) @ 100 % Duty Cycle
200 A18.0 V (230 V) @ 25 % Duty Cycle
129 A15.2 V (230 V) @ 60 % Duty Cycle
100 A14.0 V (230 V) @ 100 % Duty Cycle
GTAW (AMP+) Welding Output 180 A17.2 V (120 V) @ 25 % Duty Cycle
130 A15.2 V (120 V) @ 60 % Duty Cycle
100 A14.0 V (120 V) @ 100 % Duty Cycle
200 A18.0 V (230 V) @ 25 % Duty Cycle
129 A15.2 V (230 V) @ 60 % Duty Cycle
100 A14.0 V (230 V) @ 100 % Duty Cycle
GTAW (DC) Welding Output 150 A16.0 V (80 V) @ 18 % Duty Cycle
115 A14.6 V (80 V) @ 25 % Duty Cycle
90 A13.6 V (80 V) @ 60 % Duty Cycle
70 A12.8 V (80 V) @ 100 % Duty Cycle
SMAW (AC) Welding Output 110 A24.4 V (120 V) @ 25 % Duty Cycle
70 A22.8 V (120 V) @ 60 % Duty Cycle
55 A22.2 V (120 V) @ 100 % Duty Cycle
200 A28.0 V (230 V) @ 25 % Duty Cycle
129 A25.2 V (230 V) @ 60 % Duty Cycle
100 A24.0 V (230 V) @ 100 % Duty Cycle
SMAW (AMP+) Welding Output 150 A26.0 V (120 V) @ 25 % Duty Cycle
90 A23.6 V (120 V) @ 60 % Duty Cycle
70 A22.8 V (120 V) @ 100 % Duty Cycle
200 A28.0 V (230 V) @ 25 % Duty Cycle
129 A25.2 V (230 V) @ 60 % Duty Cycle
100 A24.0 V (230 V) @ 100 % Duty Cycle
SMAW (DC) Welding Output 130 A25.2 V (80 V) @ 18 % Duty Cycle
110 A24.4 V (80 V) @ 25 % Duty Cycle
80 A23.2 V (80 V) @ 60 % Duty Cycle
60 A22.4 V (80 V) @ 100 % Duty Cycle
Setting Range
AMP+
DC
AC
AC
AMP+
AMP+
DC
AC
AMP+
AC
 20.6-28 V (10-200 A)
20.6-25.2 V (10-130 A)
10.4-18 V (10-200 A)
20.6-28 V (10-200 A)
20.6-26 V (10-150 A)
10.4-17.2 V (10-180 A)
10.4-16 V (10-150 A)
20.6-24.4 V (10-110 A)
10.4-18 V (10-200 A)
10.4-17.2 V (10-180 A)
90-270 VAC
Open Circuit Voltage 78 VDC
Power Factor at Maximum Current 0.99
Efficiency at Maximum Current 80 %
Fuse Slow 16 A
Energy Save Mode <30 W
Supply Plug CEE 7/7 (type E)
Operating Temp -10 - +40 °C
Rated kVA 2.7 kVA (120 V)
6.0 kVA (230 V)
Enclosure Class IP23
Certification CE; UKCA
Dimensions, L x W x H
with battery box
without battery box
 480 x 220 x 485 mm
460 x 200 x 320 mm
Weight
power source and battery box
power source, battery box, and 4 battery packs*		 17 kg
23 kg
Description Product number
Return cable kit, OKC 50, 3 m 0700006901
MMA 4 Hand Remote Current Control, 10 m (33 ft) cable, 8-pin 0700500084
Shoulder Strap 0445197880
SR-B 17V Torch, Gas, OKC 50, 4 m 0700025514
Return cable kit, OKC 50, 5 m 0700006885
Electrode Holder, Handy 200 A with 25 mm², 3 m, OKC 50 0700006900
SR-B 17V Torch, Gas, OKC 50, 8 m 0700025515
SR-B 26V Torch, Gas, OKC 50, 4 m 0700025522
TIG Foot Control, 4.5 m (15 ft) cable and 8-pin connector W4014450
ET 17V Torch, Gas-cooled, OKC 50, 4 m, w/8-pin 0700300869

Fact Sheets

Renegade VOLT™ ES 200i (EN)

‍

Cordless battery-powered welding with no limitations.

Shockingly powerful corded and cordless welding.

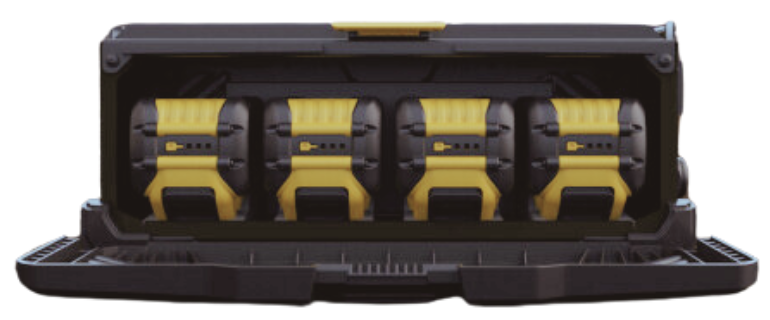

Renegade VOLT is a battery-powered welder as strong as they come - whether you're on the go or in the shop. With cordless power that burns up to 30 electrodes per charge thanks to four swappable 12Ah DEWALT® FLEXVOLT® batteries, and the ability to plug into mains power, no job can outrun the wrath of this Renegade.

‍

‍

Shockingly portable Grab-and-Go welding.

Renegade VOLT is lightweight and compact to fit where generators can't. The portable welder is 5x smaller and lighter than a typical compact welder-generator. And it can be easily carried in one or two pieces, so you have the freedom to weld absolutely anywhere.

‍

‍
