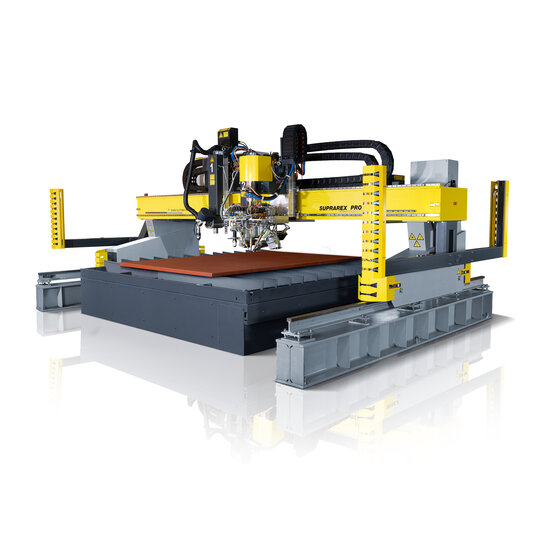

Suprarex PRO
The Suprarex™ PRO sets the standard for large gantry cutting systems, delivering reliable performance in the toughest cutting applications. From superior engineering to reliable performance to advanced technology, the machine is packed with features you expect from the CNC cutting technology leader. With a full range of process tool options, Suprarex™ PRO is the ideal choice for productive, heavy-duty cutting across large working areas.Suprarex™ PRO’s heavy-duty large gantry design easily accommodates a wide variety of cutting tools, including multiple bevel stations, up to 4 plasma stations, up to 12 oxy-fuel torch stations, marking and labelling tools, and even a drilling station with automatic tool changer.Plasma CuttingThe Suprarex™ PRO can be equipped with up to four iSeries precision plasma cutting systems for high-speed, high-accuracy CNC metal plate cutting, capable of cutting and marking with the same torch. iSeries systems are available in 200 to 800 Amp configurations.Oxy-Fuel CuttingThe Suprarex PRO™ can be equipped with up to 12 oxy-fuel torch cutting stations, utilizing either the CoolJet PRO or SmartJet oxy-fuel torches for heavy-duty thick plate cutting, with fully automatic gas control and a built-in process database.Plasma BevelingThe Suprarex PRO™ can be equipped with up to two DMX Automated Plasma Bevellers, featuring compound motion and ESAB’s SmartBevel Technology for precision weld preparation and high productivity with reliable beveling.Oxy-Fuel BevelingMultiple oxy-fuel beveling options are available on the Suprarex™ PRO, including the fully automated Infinite Rotating - Variable Bevel Angle unit (IR-VBA), widely used in tank, bridge, wind tower, and ship manufacturing.DrillingThe Suprarex™ PRO can be equipped with the Drill System 307, for automated drilling, threading, and counter-boring operations in steel plate fabrication, with a 7-tool automatic changer for fast tool changes without moving the spindle.
Highlights
- Reinforced, fabricated beam with dual-linear rails (Y-axis), heavy-duty crane rails (X-axis), and precision gear drives for high speed and long service life
- High machine speed improves productivity, while increased acceleration and smooth motion produce highest quality parts
- Featuring oversize drives, Dual Linear Rails, and a stiff gantry design, Suprarex™ PRO excels at everything from precision small hole cutting, to drilling, to text marking, and large scale beveling cutting
- The machine is equipped with an innovative safety package that provides full compliance with EC Machinery Directive, enhancing personnel safety by providing protection across the full width of the moving machine
- A new quick-disengage mechanism for the X-axis drives improves serviceability to reduce down-time
- Optional features include operator platforms for large working areas, heat shielding for thick plate processing, process monitoring cameras, and many more
Process
- Plasma Cutting
- Oxy-Fuel Cutting
- Plasma Bevel Cutting
- Oxy-Fuel Bevel Cutting
- Drilling
- Primer removal by blasting or grinding
Engineered for Power & Reliabilty: Built to Conquer Any Job
A reinforced welded box beam design and dual linear rails provide exceptional stability and long service life. Its all-steel construction, heavy-duty side carriages, and high-powered drives ensure this automated cutting solution stands up to the demands of heavy metal plate cutting, even at thicknesses up to 300 mm. Floor-mounted and beam-mounted options make installation flexible for any workspace.

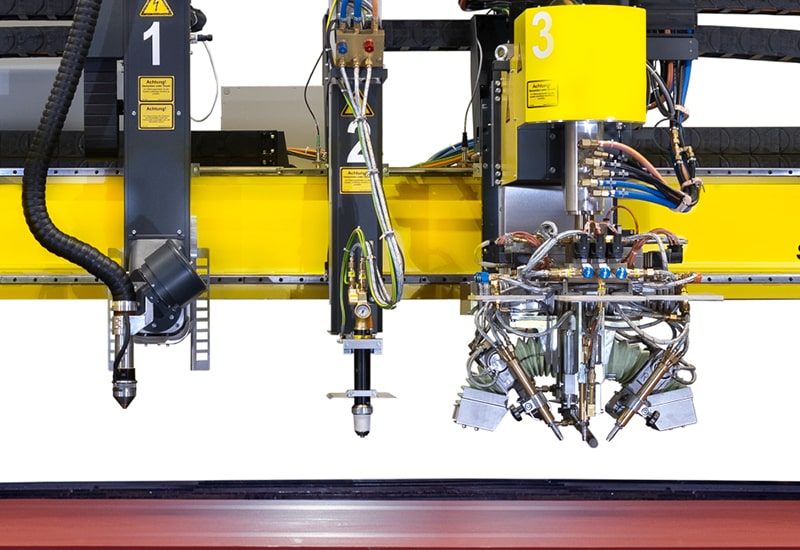

Unlock Limitless Possibilities with a Comprehensive Selection of Cutting Tools.
Suprarex PRO offers unmatched versatility with support for up to 4 plasma torch stations, 12 oxy-fuel stations, plasma and oxyfuel bevel units, and an automated drilling system. This CNC-controlled cutting machine handles plasma, oxy-fuel, beveling, drilling, threading, marking, and more, ideal for manufacturers who need the flexibility to handle different types of cutting jobs. Advanced automation and smart process controls ensure seamless integration and high productivity in every application.

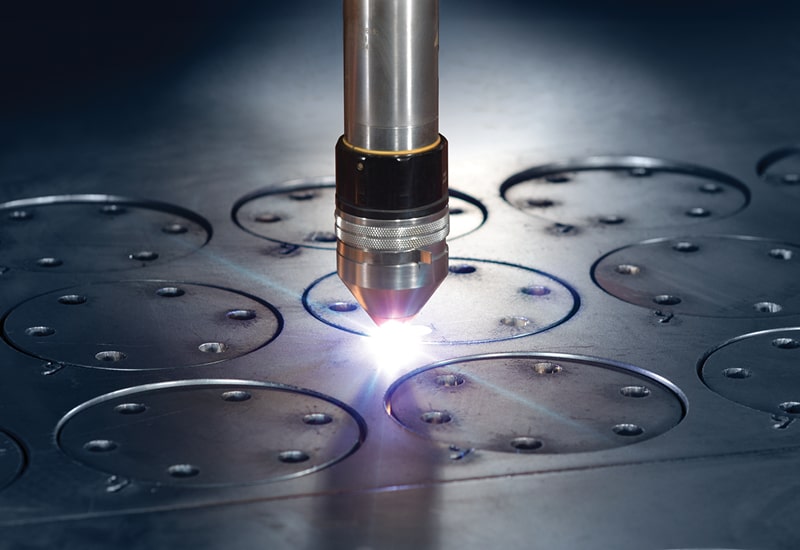

Precision Redefined: Experience Elite Cutting Performance
Delivering maximum speeds up to 40,000 mm/min, the SUPRAREX PRO excels in fast, accurate metal cutting with high positioning speed and dynamic accuracy. Oversized drives, low backlash planetary gearboxes, and an extra-large gantry design enable flawless small-hole cutting, beveling, and precision marking. Integrated SmartCycle Technology and advanced motion systems optimize cycle times without sacrificing quality.

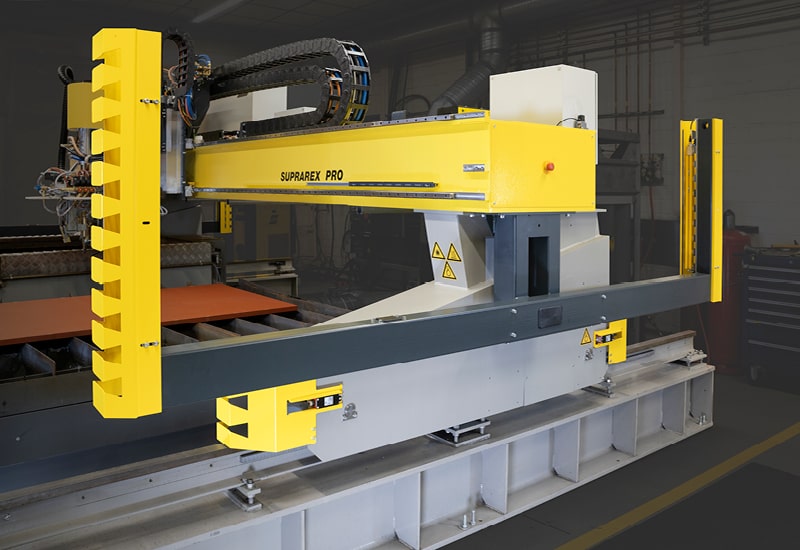

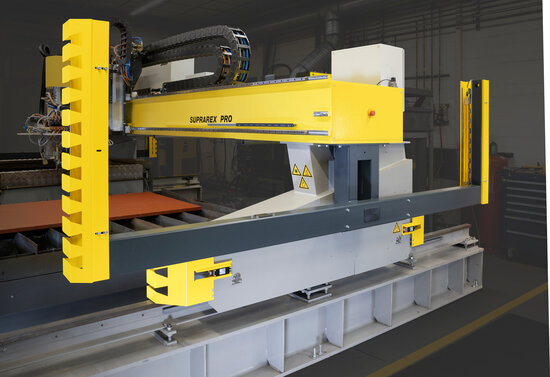

Next-Level Safety: Advanced Protection for Operators
Suprarex PRO is equipped with an industry-leading safety package, protecting operators across the full machine envelope. The CNC is positioned within the protection zone of the safety light curtains. Additional features include safety bumpers and safety-rated controller, all working together to minimize risk and reduce downtime. Service Mode and advanced collision protection further enhance operator safety and machine reliability.
