Warrior Edge 500 CX

Adaptive optimized Pulse MIG process that compensates for operator variation with an easy, user-friendly setup designed to achieve excellent weld results
Fit for purpose WeldMode SPEED that provides a focused arc that allows the welder to better and easier handle the weld puddle at higher travel speeds increasing the productivity
Optional cooling unit
Integrated WeldCloud connectivity

Highlights

TrueFlow, the digital gas flow control system from ESAB, effectively manages shielding gas both in starts and while welding thus improving quality and decreasing consumption
Effective and quick to set-up operator management system with key card that allows locking down quick-jobs with setting limits improves repeatability and adherence to welding procedure specifications
The 2021 Red Dot design award winning design provides well-designed ergonomics and intuitive user interface that reduces training needs for operators
SpoolSafe - unique in the market IP54 protection against dirt/dust, keeping your wire dry and clean, protecting the integrity of your weld
PreciDrive wire drive system maintains precision wire feeding performance to promote consistent weld quality
A hybrid HMI solution with material selection and configurations on a TFT-screen inside the unit with a clear and easy to use external display for everyday operation makes unit easy to operate

Process

GMAW (MIG/MAG)
GTAW (TIG)
SMAW/MMA (Stick)
GTAW-DC (TIG DC)
Multi-Process

Specifications
Voltage	380-460 V ±10 %, 3 Φ, 50/60 Hz
MIG/MAG Welding Output	400 A34.0 V @ 100 % Duty Cycle 500 A39.0 V @ 60 % Duty Cycle
Stick Welding Output	400 A36.0 V @ 100 % Duty Cycle 500 A40.0 V @ 60 % Duty Cycle
TIG Welding Output	400 A26.0 V @ 100 % Duty Cycle 500 A30.0 V @ 60 % Duty Cycle
Setting Range GTAW (TIG) SMAW/MMA (Stick) GMAW (MIG/MAG)	4-500 A (10.2-30 V) 8-500 A (20.3-40 V) 8-500 A (8.0-44 V)
Open Circuit Voltage	54.8 V
Power Factor at Maximum Current	(MIG/MAG) 0.93 (MMA) 0.91
Efficiency at Maximum Current	(MMA) 89 % (MIG/MAG) 88 %
Operating Temp	-20 - +55 °C
Enclosure Class	IP23
Insulation Class	H
Application Class	S
Certification	CE
Dimensions, L x W x H	700 x 325 x 680 mm
Weight	85 kg

Description	Product number
Warrior Edge 500 CX I, 380-460 V, CE	0448500880
Warrior Edge 500 CX II (incl. SPEED), 380-460 V, CE	0448500881

Description	Product number
Coolant Liquid - Glidex Extra II (10 l)	0465720002
4-wheel Trolley, Power Source	0349313450
4-wheel Feeder Trolley for >300 mm Spools	0349313700
Guide Pin Extension Kit *	0465508880
Wheel Kit, Power Source	0465416880
RobustFeed Wheel Kit *	0446081880
Boom Adaptor (Lifting Device)	0446956880
Torch Holder RobustFeed	0446958880
Torch Strain Relief RobustFeed	0446082880
Quick Connector Marathon Pac™	F102440880
Exeor MIG 4.0G2 CX, Gas-Cooled, Up/down **, 3m	0700025755
Exeor MIG 4.0G2 CX, Gas-Cooled, Up/down **, 4m	0700025756
Exeor MIG 4.0G2 CX, Gas-Cooled, Up/down **, 5m	0700025757
Exeor MIG 4.0W2 CX, Water-Cooled, Up/down **, 3m	0700025730
Exeor MIG 4.0W2 CX, Water-Cooled, Up/down **, 4m	0700025731
Exeor MIG 4.0W2 CX, Water-Cooled, Up/down, 5m	0700025732
RobustFeed Edge BX, Water-cooled, Euro	0446600880
RobustFeed Edge CX, Water-cooled, Digital Gas Control, Heater, Euro	0446600881
Counterbalance Arm RobustFeed **	0448181880
Feeder Mounting Kit, Power Source Assembly incl cable holders	0447518880
Exeor MIG 4.0G2 DX, Gas-Cooled, Graphic Display***, 5m	0700025760
Exeor MIG 4.0W², Water-Cooled, 4m	0700026051
Exeor MIG 4.0W², Water-Cooled, 3m	0700026050
Exeor MIG 4.0W2 DX, Water-Cooled, Graphical display, 4m	0700025734
Exeor MIG 4.0G2 DX, Gas-Cooled, Graphic Display***, 4m	0700025759
Exeor MIG 4.0W2 DX, Water-Cooled, Graphical display, 3m	0700025733
Exeor MIG 4.0W2 DX, Water-Cooled, Graphical display, 5m	0700025735
Counterbalance Arm Extension Kit for use with 6m (19 ft) and 7.5m (24 ft) torches	0448116880
COOL 2 Cooling Unit	0465427880
Exeor MIG 4.0W², Water-Cooled, 5m	0700026052
Exeor MIG 4.0G2 DX, Gas-Cooled, Graphic Display***, 3m	0700025758
Stabiliser kit for Counterbalance Arm **	0465509880

Fact Sheets

Warrior Edge 500 CX (EN)

‍

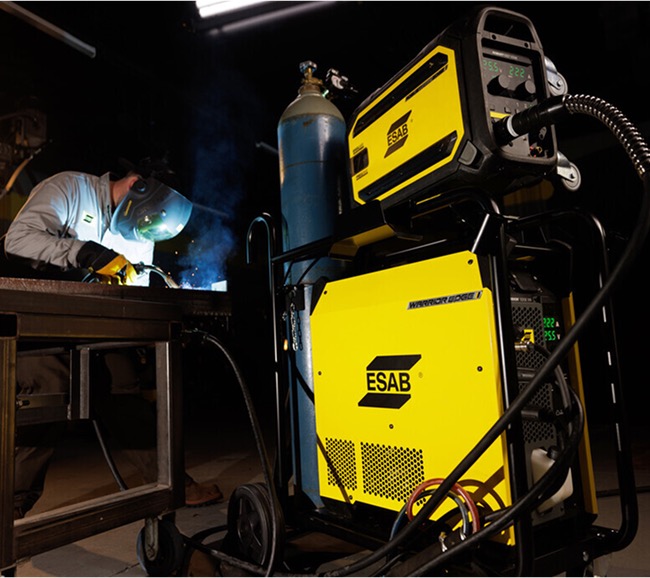

Warrior Edge is our most advanced pulse MIG welding system, designed for superior welding performance and effortless operation. Its intuitive interface and optimized settings help welders work faster and more efficiently—maximizing productivity every step of the way.

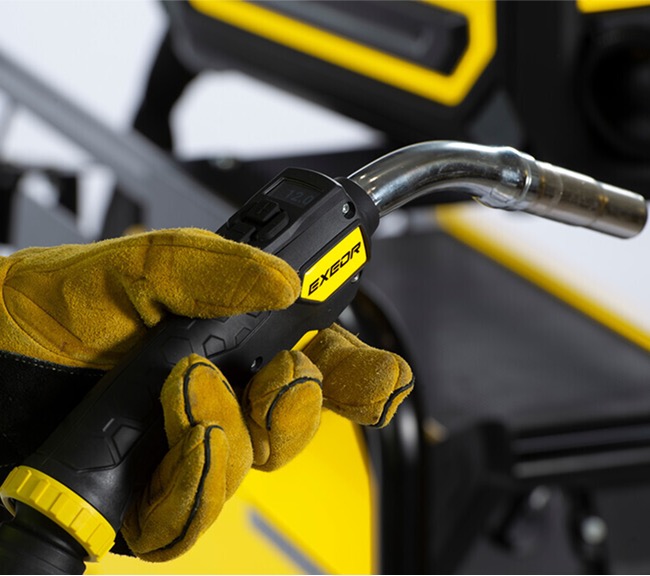

ENGINEERED FOR COMFORT.

Exeor MIG torch with an ergonomic design reduces welder fatigue while improving weld quality.

Remote control functionality
Efficient cooling technology
LED light feature
Longer-lasting consumables
Longer-lasting consumables for less switch outs between welds

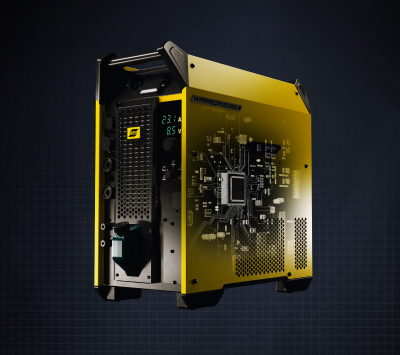

ENGINEERED FOR POWER.

Get high-performing reliability with Warrior Edge advanced pulse MIG power source.

Advanced pulse MIG welding process with stick, TIG, and carbon arc gouging capabilities
Heavy-duty productivity up to 500 A at 60% duty cycle
Air tunnel design for protection from dust and debris
Compatible with SPEED WeldMode for faster welding, deeper penetration, and reduced spatter
Enhanced control for fillet welds and narrow groove applications

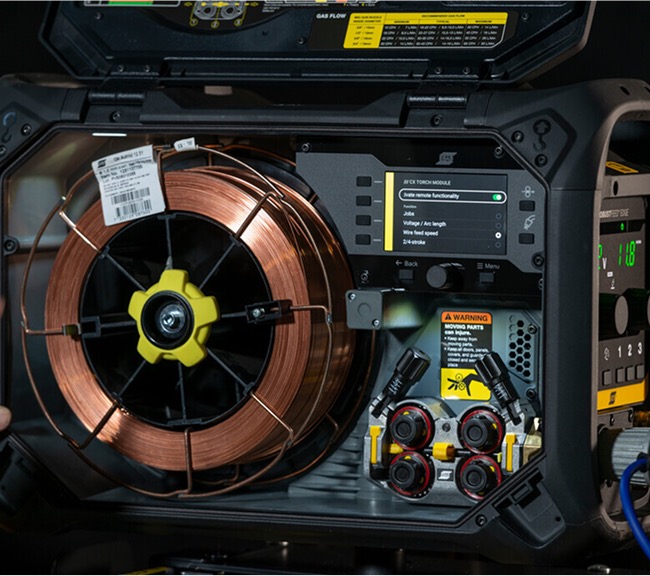

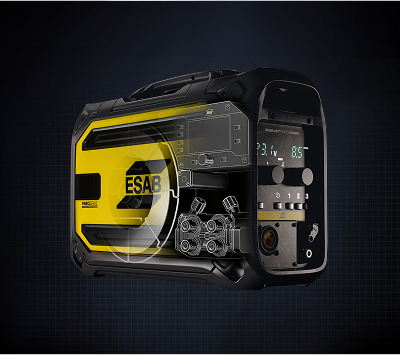

ENGINEERED FOR DURABILITY.

Rely on RobustFeed Edge multi-process MIG wire feeder to get the job done.

Built for high productivity, its rugged design protects the integrity of your welding wire in every environment. RobustFeed Edge high-performing multi-process MIG wire feeder with best in-class durability. 

TrueFlow digital gas control Learn more
SPOOLSAFE wire protection with IP54 (chassis/housing)
PRECIDRIVE 4-wheel drive feeding mechanism
