Standard Welding Machines

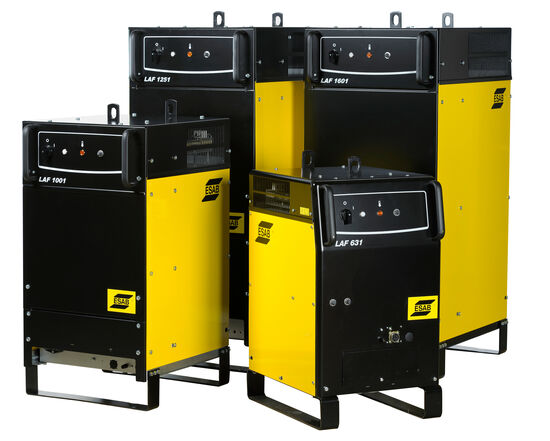

Three-phase, fan-cooled DC welding power sources designed for high productivity automated submerged-arc welding (SAW) or high productivity gas metal arc welding (GMAW).

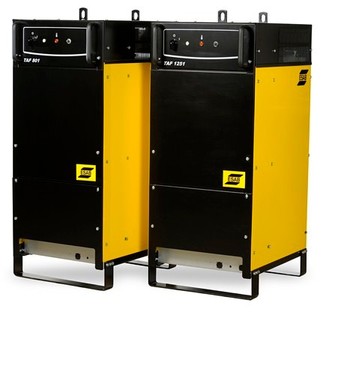

Square wave AC power sources that convert the secondary voltage from a sinus wave via a thyristor controlled rectifier bridge to a square wave arc voltage with excellent strike characteristics and good welding properties.

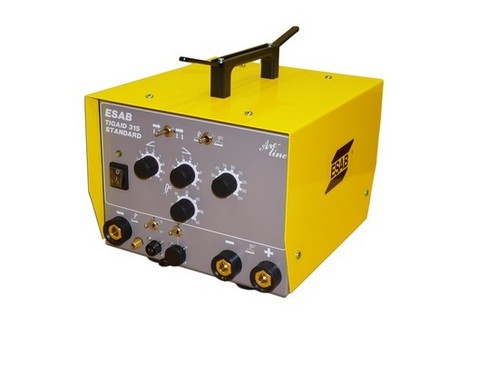

The Tigaid 315 AC/DC is a useful tool for converting MMA machines, transformers and rectifiers for TIG applications. Tigaid controls the supply of current, HF ignition and gas flow. When steplessly and electronically-controlled MMA power sources are used, it is possible to obtain current setting and slope functions.

The Renegade TIG are inverter based High frequency TIG (HF) and MMA/Stick machines with extreme power to weight ratio. The compact format makes it easy to carry and bring to any jobsite. Combined with high duty cycle and the ability to run the machine on long mains and welding cable makes this a superior welding machine for both on-and off site applications.The machine has an automatic input voltage sensor and can operate with any input voltage between 208V and 528V in 3-phase and 230V in single phase.

For demanding applications in TIG welding.

‍

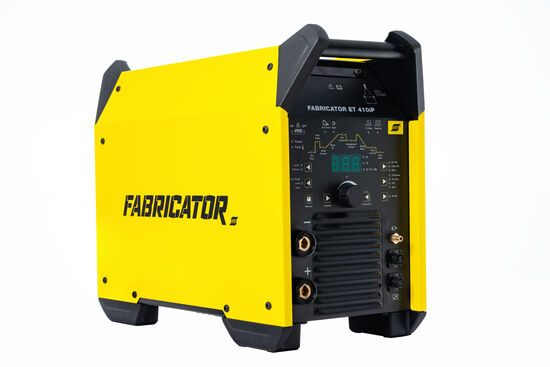

Fabricator ET 410iP is a heavy-duty inverter-controlled power source for HF TIG Pulse welding and MMA (Stick) welding.The Fabricator ET 410iP is built to withstand rugged use, making it a perfect solution for industrial usage. Ideal for heavy industries.

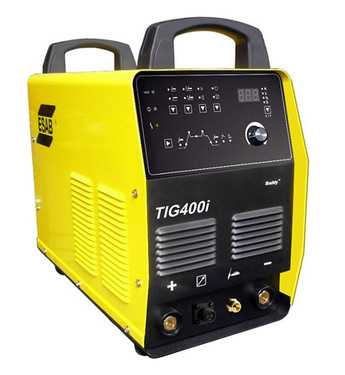

The Buddy™ Tig 400i is an industrial-duty, fan cooled, inverter controlled power sources meant for TIG/MMA welding with professional welding performance.The Buddy™ TIG machines are capable of performing TIG welding with precise current control.  Select a TIG-torch to suit your needs, a gas regulator and a cylinder of gas. You can weld mild steel or stainless steel material with or without filler material.The machine has controlled welding dynamics with adjustable Hot Start and Arc Force controls that provide excellent weld properties even for welding pipe root passes.

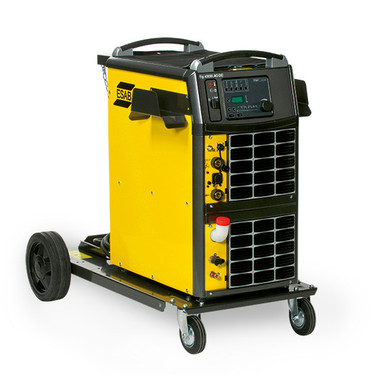

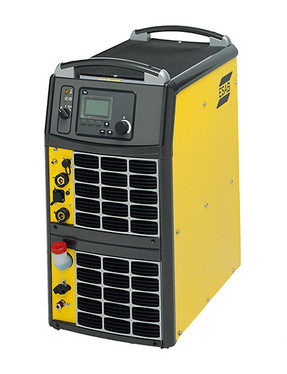

Aristo^® TA4 is a one knob panel for setting and adjustment of current. 3 soft buttons provides setting and adjustments of Arc force, Hot start, gas pre/post flow, Slope up/down, HF/Lift Arc and 2/4 stroke.Aristo^® TA6 is a more sophisticated panel with additional possibilities:Choice of electrode type, gas purge, memory of 10 welding parameters and pulse TIG.Inclusive for both panels is a digital display for A/V measurement.Water cooling unitAristo^® Tig 4000iw includes a water cooling unit to accept the use of a water cooled TIG torch.Robust and PowerfulAristo^® Tig 4000i is a ideal partner when it comes to efficient production indoors or outdoors, installation on site or all type of repair & maintenance welding.The power source is a compact and sturdy piece of equipment with a chassis made of extruded aluminium sections: Alutech^™. This is a robust material that withstands rough treatment.The power source is based on inverter IGBT technology that provides reliable equipment with outstanding welding characteristics.The communications and control CAN-bus system means less cables, which in turn increases operational reliability.MMA ApplicationsAristo^® Tig 4000i can weld most metals to alloyed and non alloyed steel, stainless steel and cast iron. Electrodes up to 6 mm and Gouging electrodes up to 8 mm.FlexibilityThe fundamental part is the 400 A power module. The link between man and machine is the communicator. You can choose between 2 control panels (MMC) depending upon your requirements and demands. Both of them are clear, easy to understand and to operate.

Rogue ET is a powerful and easy to handle entry level high frequency start TIG machine. It has been designed with ESAB DNA code which gives great robustness locked in very compact housing.Lightweight, ergonomic handle, carry strap and long extension cables make Rogue ET the ideal solution for field applications. All variants of machines are suitable to work with generators (7kW).Rogue ET performs with exceptional arc characteristics, both in TIG and MMA mode. There is a broad number of advanced parameters that can be adjusted in TIG: gas pre flow, start current, ramp up time, ramp down time, finish current and post flow. All of these can be worked with 2 or 4 stroke mode. Additionally the PRO version has a pulsing feature with frequency from 0,2 Hz up to 500 Hz for better heat input control. In MMA, user can adjust Hot Start or Arc Force, to match his best welding preferences or application. All of this can be quickly adjusted by simple and intuitive user interface.

Aristo^® Mig 5000i/U5000i WeldCloud power sources provides substantially improved arc welding performance. It’s designed for high-productivity and high-quality welding applications.Professional TIG DC welding with U5000iw. Additionally, U5000iw features high frequency, LiftArc^™ striking and TIG pulse-welding with DC.The Aristo power source integrates fully with ESAB's industry-leading WeldCloud^™ online data management platform via Wi-Fi, mobile cellular or hard-wired Ethernet communication.

Fabricator are a heavy duty inverter controlled power sources for MIG/MAG and MMA (Stick) welding. Built to withstand rugged use which makes it a perfect solution for industrial usage. Ideal for heavy industries using solid and flux-cored wires together with Fabricator Feed.

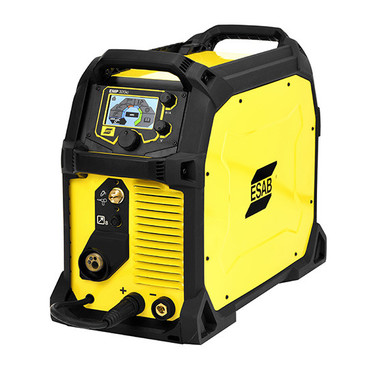

The industrial, true multi-process machines that combine power and mobility. These compact and lightweight systems offer flexibility in any fabrication environment. Designed for productivity and reliability, the 4-wheel wire feed system provides high and consistent weld quality regardless of the material being welded.The EMP 320ic, with a maximum output of 350 Amps, is the ideal universal welding system capable of running 1.2 mm solid and flux-core wires with a high duty cycle.
