Welding Torches

Self-propelled, 4WD, automatic tractor with two different designs:Single: available with standard or high speed motorTwin-Arc: with a simple add-on for the extra wire, you can convert an A6 Single Mastertrac into a highly productive automatic Twin-arc welder for fillet and butt welds without the use of an extra machine or power source.

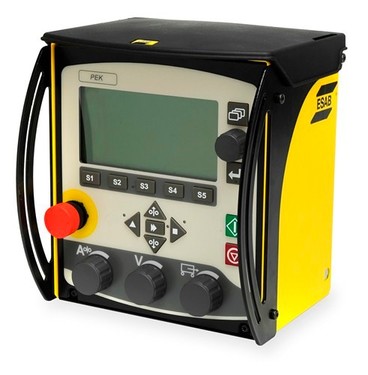

PEK is a system adapted for use with ESAB’s automatic power sources LAF 631/1001/1251/1601, TAF 801/1251, and Aristo^® 1000 AC/DC. The control system is connected to the power source via a control cable and incorporates a CAN bus system for data transfer.

PEK can also be used as a motion controller to integrate other power sources for mechanisation and automation.

The control system is easy to use thanks to its clear text menu. Users can choose between a large number of different languages. The large display keeps the user informed about the main parameters including current, voltage and travel speed. Parameter sets can be given names for easier assignment.. Five soft keys can be configured according to individual preferences. PEK supports your system’s maintenance and keeps track of its use.

ESAB standard motors and travel axis can be selected from a list, and other motors can be programmed manually.

Pre-settings
PEK can easily be pre-set by the user. Manual control keys for wire feed and travel direction allow fast access to frequent settings. Turn knobs allow easy adjustment of wire feed speed, voltage and travel speed during the process.

Additional functionality
More functions are available by adding an external analogue or digital interface.

Welding parameter limits
PEK allows defined limits for the settings and the measured parameters. The welder will be alerted if the weld parameters are outside the allowed limits.

Makes welding safer and easier
A USB slot enables users to file all settings and configurations. Restore your valuable production data within minutes. Security is provided by three-level user accounts. Users can also transfer welding parameters between other PEK units.

Emergency stop button
The emergency stop button can also be used in an extended E-stop chain.

Minimal floor working area thanks to the single rail/wall support

ICE™ exploits the excess heat generated by the welding process to melt an additional non-powered welding electrode - the Integrated Cold Electrode; this yields significant productivity benefits without increasing heat input.

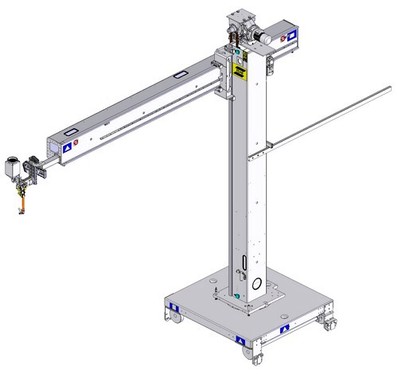

For industrial production with good profitability, the mechanization is the answer. CaB 300S might be the solution to increase the profitability on your welding. A proven product has been further improved.

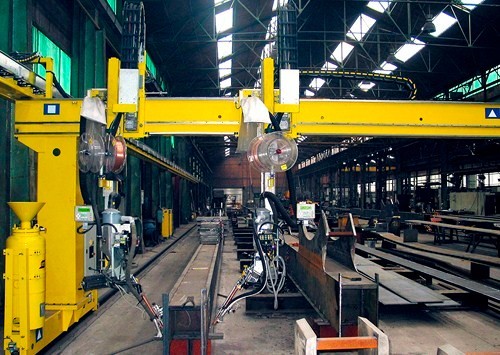

Flexible, Modular Column and Booms

ProductivityIn today´s industrial development, the rate of productivity has been brought more and more into focus as a decisive parameter for raised profitability. This requires individually adapted production solutions, flexible enough to conveniently switch over, without extensive rebuilding, between a variety of applications. In close co-operation with the welding industry ESAB has created an application oriented Column and boom range with integrated modular functions in order to meet our customers´ demands for purposeful solutions on a competitive market. Stability and reliability CaB 460M has a stable and robust design of the profiles and saddle providing large working ranges and heavy load capacity with ample safety margins for reliable operations. Different types of foundations are available; rail carriage, concrete stand or steel plate – to fit any need. The lift drive has a reliable safety factor and is supplied with a security device which, regardless of boom position, immediately locks the boom to prevent unwanted descent in the event of a breakdown. Positioning of the horizontal boom can easily be carried out both in the vertical and horizontal direction. An even and stable welding speed is secured by the rack and pinion drive. The control system has been designed with totally integrated functions; welding head manipulation and operation of the column and boom – of course remote controlled.Individual solutions When dressing up the naked column and boom into a complete welding solution, the optional combinations are almost unlimited. In order to facilitate the selection process to result in a specification based on customer´s application, there is a computer aided configuration system available. Together with the ESAB representative the customer is able to build up his welding solution, i.e. a specification of the modular components to be assembled and installed at the customer´s workshop in a most convenient manner. For all modular components applicable for this column and boom, kindly refer to our range of leaflets available from our representative.
