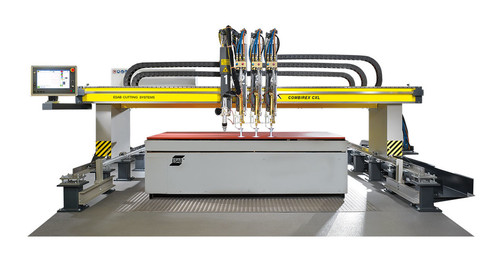

The Combirex CXL offers large gantry design and performance in a compact package. The rugged gantry features all-steel construction with machined mating surfaces for stiffness and accuracy. Featuring a precision linear rail Y-axis guiding system, precision three-axis rack-and-pinion drives, digital AC drives and AC brushless motors, this machine delivers exceptional cutting performance.Plasma stationsThe Combirex CXL can be equipped with ESAB’s iSeries Plasma System (i100, i200, i300, i400), which allows the machine to cut and mark with the same plasma torch.Plasma bevellingThe Combirex CXL can be equipped with the optional DMX Automated Plasma Beveller.Oxy-Fuel torch stationsThe Combirex CXL may be equipped with up to 4 oxy-fuel cutting stations.

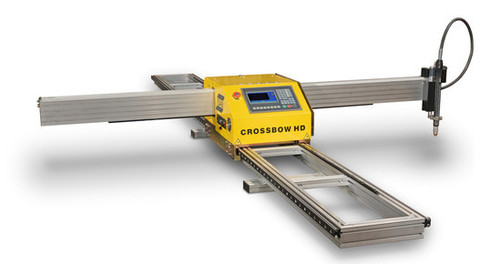

Compact Cutting SolutionCrossbow HD is a compact machine, ideal for small fabrication shops, maintenance and repair shops, trade schools. It can even be disassembled and transported to remote job sites.
Economical Cutting SolutionAutomated functions and a user friendly CNC provide powerful, versatile, oxy-fuel or plasma processing in a value-minded package. Precision guide rail enables stable motion of the crossbeam and full support of the cutting torch for accurate, reliable performance. Precision linear rails minimise vibration during cutting to ensure accurate cutting over the entire working envelope.
Flexible Process SolutionCrossbow can be equipped with plasma, oxy-fuel, or both. With plasma, cut mild steel or aluminium up 20 mm, or stainless steel up to 15 mm. Using oxy-fuel, cut mild steel up to 100 mm thick. It's simple, menu-driven interface makes operation easy to learn and use. The CNC features a comprehensive library of 24 common shapes which minimise programming and set-up time. Dimensions are easily edited to create custom shapes without additional programming. Custom programs are supported through basic M-and G-Code programming, and off-line programmed NC files can be transferred to the machine using a standard USB connection.

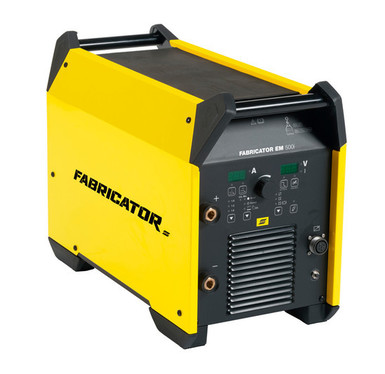

Fabricator are a heavy duty inverter controlled power sources for MIG/MAG and MMA (Stick) welding. Built to withstand rugged use which makes it a perfect solution for industrial usage. Ideal for heavy industries using solid and flux-cored wires together with Fabricator Feed.

Recommended for applications where slight delivery pressure increases (due to decreasing cylinder pressures) would not affect the performance characteristics of the work or test results. The SR350 regulators are designed for medium-to-heavy duty applications.

‍

Oxy/Fuel torch-mount Pair Pack. Flashback arrestors and reverse flow check valves provide additional protection against flashbacks. Victor recommends the use of the se devices whenever possible. Victor add-on flashback arrestors contain both a reverse flow check valve and a flashback arrestor. Due to the high flow requirements of Victor Heavy Industry torches, it is important to use flashback arrestors that have sufficient flow capacity. It is important to understand the difference between reverse flow check valves and flashback arrestors. Reverse Flow Check Valves: Helps prevent the reverse flow of gases from traveling past the check valve. Flashback Arrestors: Prevents a flame from traveling past the flashback arrestor in the event of a flashback.

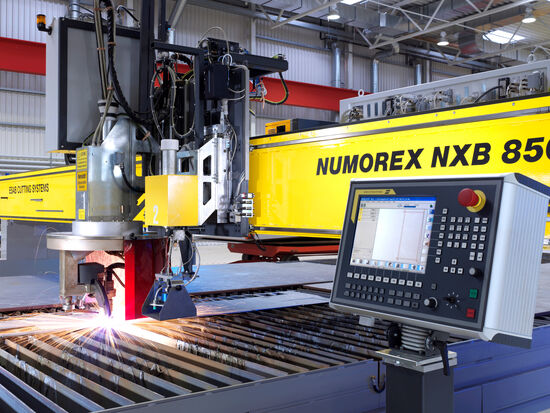

Engineered for heavy-duty operation under extreme loading conditions, the Numorex™ can be used as a plasma, oxy-fuel or combination plasma-oxy-fuel cutting machine.

The machine’s oversized steel wheels carry its weight effortlessly to ensure smooth movement. The drive system also delivers high acceleration for optimum performance on detail work and small holes.

The Numorex’s key advantage lies in its high degree of automation:

• Multi-carriage oxy-fuel torches allow simultaneous congruent or mirrored oxy-fuel cutting for high throughput capacity
• Automatic capacitive height control guarantees a constant height between the plate and the torch ensuring perfect cut quality
• Automatic proportional valve gas controls make cutting setup fast and easy through the Vision T5’s touch screen interface
• Individual and automatic flame ignition per carriage eliminates manual ignition
• Solenoid valves for each carriage automatically reduce gas consumption by switching the torches on and off as needed
• Automatic flame-check monitoring detects potential ignition failure and automatically restarts the ignition sequence
• A range of oxy-fuel bevelling heads cover the full scope of bevel angles
• Various robust and precise plasma bevelling heads are available, allowing cutting of any shape many times faster than the oxy-fuel process.

The Numorex is designed to integrate:

• Under-water plasma equipment to reduce fumes, noise and ultra-violet emissions
• Dry plasma units to enable higher productivity
• Precision plasma for laser-like cut quality
• Marking tools for powder, punch, arc marker and inkjet marking that allow marks to be produced in fully-automatic mode before cutting

Cutting torch with built-in patented flashback arrestors and reverse flow check valves for added safety.

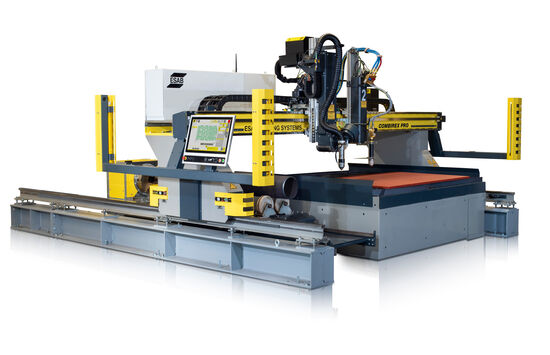

The Combirex™ PRO automated cutting system offers large gantry design and performance in a compact package. The rugged gantry features all-steel construction with machined mating surfaces for stiffness and accuracy. Heavy duty H-beams support robust crane rails to provide a sturdy, durable foundation, and easy installation on any concrete floor. Featuring a dual linear rail Y-axis beam and high-speed digital AC drives, this machine delivers the cutting performance you would expect from much more expensive gantries.Plasma CuttingThe Combirex PRO can be equipped with air plasma systems up 120 A or ESAB’s iSeries high precision plasma systems, which allow the machine to cut and mark with the same plasma torch. iSeries systems available on the Combirex PRO in 130 to 600 A configurations.Plasma BevelingThe Combirex PRO can be equipped with the optional DMX Automated Plasma Beveller. This compact plasma bevel system uses compound motion and ESAB’s SmartBevel Technology to deliver high productivity with reliable beveling.Oxy-Fuel Torch StationsThe Combirex PRO can be equipped with up to 4 gas torch cutting stations, utilizing either the CoolJet PRO or SmartJet oxy-fuel torches. An electronic proportional valve gas control fully automates the high/low preheat pressures, cutting oxygen pressure, and pierce ramp control through the built-in process database.Plate MarkingWith the Combirex PRO, plate marking can be accomplished by the iSeries plasma system or by an optional air scribe marker, allowing accurate marking and cutting on the same parts.

Oxy/Fuel regulator-mount Pair Pack. Flashback arrestors and reverse flow check valves provide additional protection against flashbacks. Victor recommends the use of these devices whenever possible. Victor add-on flashback arrestors contain both a reverse flow check valve and a flashback arrestor. Due to the high flow requirements of Victor Heavy Industry torches, it is important to use flashback arrestors that have sufficient flow capacity. It is important to understand the difference between reverse flow check valves and flashback arrestors. Reverse Flow Check Valves: Helps prevent the reverse flow of gases from traveling past the check valve. Flashback Arrestors: Prevents a flame from traveling past the flashback arrestor in the event of a flashback.

‍

Manual joint positioning system

‍
