Cutting Machines

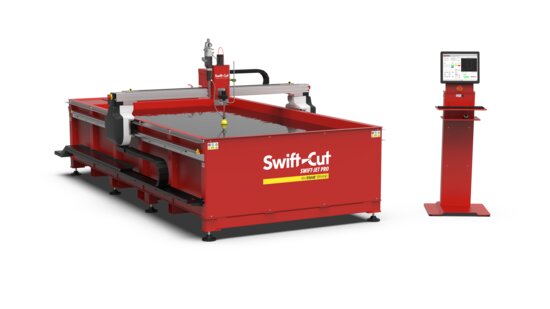

The Swift-Jet Pro is a feat of incredible engineering; a package that combines the ability to cut a wide range of materials with superb accuracy and repeatability, to create excellent results. Exceptional quality, phenomenal value for money, and the robust build of Swift-Cuts market-leading plasma tables have all come together to create the Swift-Jet Pro, the waterjet table that is setting the new standard.Versatile waterjet cuttingCut virtually any material from granite and stone to glass, resin, rubber, steel and everything in between. Cut metal up to 50 mm thick and low-density materials up to 100 mm thick.Power and efficiencyEquipped with a market-leading direct drive high-pressure pump which is more energy efficient than intensifier pumps and has a longer service life too.SoftwareThe Swift-Jet Pro features IGEMS CAM software as standard. This industry leading software has a fantastic material library which saves you time by cutting materials at the optimum feed rate every time, and with the best finish.Table sizesThere are two cutting area options available to suit your workshop: 1500 x 1500 mm and 1500 x 3000 mm.

The brief was simple, take all that we learnt with our best-selling Swift-Cut Pro, and build it bigger, stronger and more powerful than ever before. The outcome is a range of two heavy duty CNC plasma cutting machines built to withstand the rigours of all day cutting whilst remaining incredibly affordable.Designed for High-Definition cutting up to 20 mm and standard definition up to 35 mm, the XP combines superior cut quality and reliability in a package that won’t let you down.HD Plasma CuttingHigh-Definition performance without the heavy-duty price. Combine with the ESAB Precision 130 HD power source for up to 20 mm dross-free cutting, or if you need more capacity, choose the M2 200i standard definition power source for 35 mm pierce capability.Plate MarkingWith the Swift-Cut XP, plate marking can be accomplished by the (optional) SwiftMARK engraving tool. Mark and cut in one operation meaning no more outsourcing or moving a project from one machine to another.SoftwareThe Swift-Cut XP comes with CAD, CAM and CNC software programs pre-installed. Draw, nest, and cut parts by following the simple step-by-step navigation. Automatic nesting comes as standard. Import DXF/DWG files or convert JPEG images for cutting. There’s an 89-shape parametric library to save drawing time, and CNC features such as plate alignment and sheet trim ensure cuts stay on the plate and leftover material can be easily tidied up for storage.Fume SuppressionZoned downdraft and water table cutting bed options are available for effective fume suppression on the complete XP range.

A collection of four cutting-edge CNC plasma cutting machines, the Swift-Cut Pro range is perfect for everyday metal cutting up to 25 mm (1 in.). This best-in-class series promises high-speed precision cuts at a low-cost investment. Easy to use and simple to learn, with exceptional aftercare and support, the Swift-Cut Pro is the solution for affordable in-house metal cutting. Its precision guide system and robust design contribute to making the Pro the world's best-selling 'light-industrial' CNC plasma machine cutter.

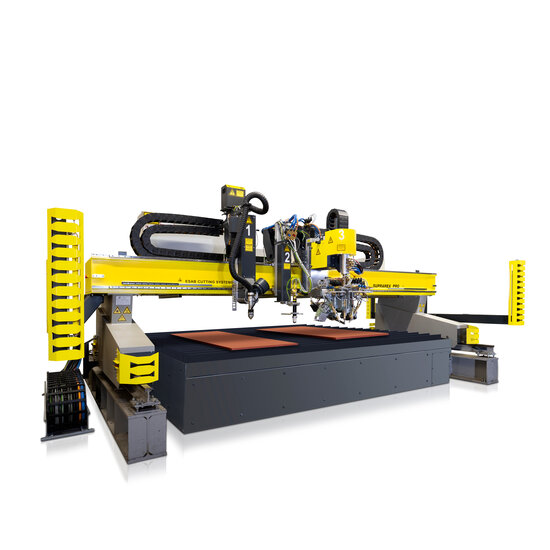

The Suprarex^™ PRO sets the standard for large gantry cutting systems, delivering reliable performance in the toughest cutting applications. From superior engineering to reliable performance to advanced technology, the machine is packed with features you expect from the CNC cutting technology leader. With a full range of process tool options, Suprarex^™ PRO is the ideal choice for productive, heavy-duty cutting across large working areas.Suprarex^™ PRO’s heavy-duty large gantry design easily accommodates a wide variety of cutting tools, including multiple bevel stations, up to 4 plasma stations, up to 12 oxy-fuel torch stations, marking and labelling tools, and even a drilling station with automatic tool changer.Plasma CuttingThe Suprarex^™ PRO can be equipped with up to four iSeries precision plasma cutting systems for high-speed, high-accuracy CNC metal plate cutting, capable of cutting and marking with the same torch. iSeries systems are available in 200 to 800 Amp configurations.Oxy-Fuel CuttingThe Suprarex PRO^™ can be equipped with up to 12 oxy-fuel torch cutting stations, utilizing either the CoolJet PRO or SmartJet oxy-fuel torches for heavy-duty thick plate cutting, with fully automatic gas control and a built-in process database.Plasma BevelingThe Suprarex PRO^™ can be equipped with up to two DMX Automated Plasma Bevellers, featuring compound motion and ESAB’s SmartBevel Technology for precision weld preparation and high productivity with reliable beveling.Oxy-Fuel BevelingMultiple oxy-fuel beveling options are available on the Suprarex^™ PRO, including the fully automated Infinite Rotating - Variable Bevel Angle unit (IR-VBA), widely used in tank, bridge, wind tower, and ship manufacturing.DrillingThe Suprarex^™ PRO can be equipped with the Drill System 307, for automated drilling, threading, and counter-boring operations in steel plate fabrication, with a 7-tool automatic changer for fast tool changes without moving the spindle.

The Combirex™ PRO automated cutting system offers large gantry design and performance in a compact package. The rugged gantry features all-steel construction with machined mating surfaces for stiffness and accuracy. Heavy duty H-beams support robust crane rails to provide a sturdy, durable foundation, and easy installation on any concrete floor. Featuring a dual linear rail Y-axis beam and high-speed digital AC drives, this machine delivers the cutting performance you would expect from much more expensive gantries.Plasma CuttingThe Combirex PRO can be equipped with air plasma systems up 120 A or ESAB’s iSeries high precision plasma systems, which allow the machine to cut and mark with the same plasma torch. iSeries systems available on the Combirex PRO in 130 to 600 A configurations.Plasma BevelingThe Combirex PRO can be equipped with the optional DMX Automated Plasma Beveller. This compact plasma bevel system uses compound motion and ESAB’s SmartBevel Technology to deliver high productivity with reliable beveling.Oxy-Fuel Torch StationsThe Combirex PRO can be equipped with up to 4 gas torch cutting stations, utilizing either the CoolJet PRO or SmartJet oxy-fuel torches. An electronic proportional valve gas control fully automates the high/low preheat pressures, cutting oxygen pressure, and pierce ramp control through the built-in process database.Plate MarkingWith the Combirex PRO, plate marking can be accomplished by the iSeries plasma system or by an optional air scribe marker, allowing accurate marking and cutting on the same parts.

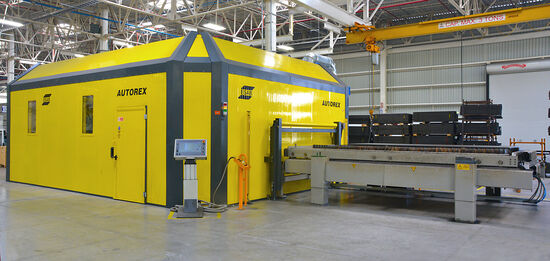

The AutoRex system is a fully enclosed thermal cutting system, working with any machine model, and providing increased safety and automation.Fully enclosing a plasma cutting machine improves safety for all shop employees by blocking all dangerous radiation, dramatically reducing plasma noise, and ensuring 100% capture of all plasma smoke.Material handling is automated through a shuttle table, which maximises arc on time and improves safety. Self-cleaning down draft tables remove cutting slag and drop-outs, further automating the system and increasing productivity.

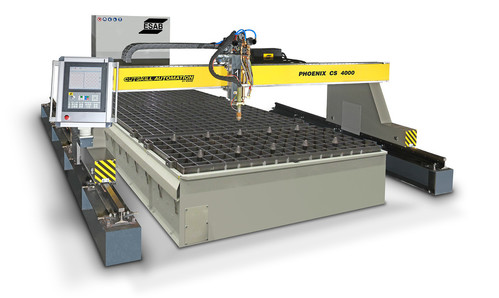

The Phoenix CS is a heavy-duty 3-axis gantry designed to deliver accurate plasma and oxy-fuel cutting to a wide range of industries. The Phoenix CS design offers high productivity, exceptional performance, and great value with easy operation. A compact system delivers performance and long service life for light fabricators that need reliable productivity.

The Combirex CXL offers large gantry design and performance in a compact package. The rugged gantry features all-steel construction with machined mating surfaces for stiffness and accuracy. Featuring a precision linear rail Y-axis guiding system, precision three-axis rack-and-pinion drives, digital AC drives and AC brushless motors, this machine delivers exceptional cutting performance.Plasma stationsThe Combirex CXL can be equipped with ESAB’s iSeries Plasma System (i100, i200, i300, i400), which allows the machine to cut and mark with the same plasma torch.Plasma bevellingThe Combirex CXL can be equipped with the optional DMX Automated Plasma Beveller.Oxy-Fuel torch stationsThe Combirex CXL may be equipped with up to 4 oxy-fuel cutting stations.

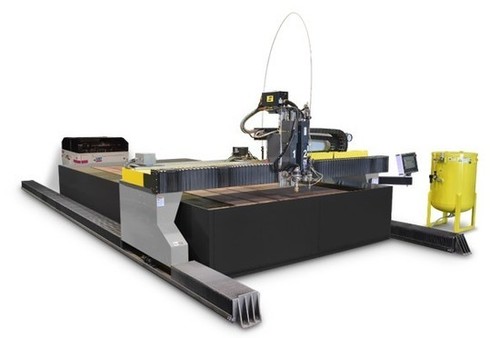

The Hydrocut HDX Waterjet Cutting System is a heavy-duty gantry cutting machine. Floor mounted crane rails and a rigid gantry are combined with digital AC drive amplifiers, brushless AC motors, and precision gearboxes. The result is a high-performance multi-process capable machine. The Hydrocut HDX easily combines waterjet with other cutting and marking processes, such as plasma cutting, plasma marking, oxy-fuel cutting, or plate lettering or marking tools.

Engineered for heavy-duty operation under extreme loading conditions, the Numorex™ can be used as a plasma, oxy-fuel or combination plasma-oxy-fuel cutting machine.

The machine’s oversized steel wheels carry its weight effortlessly to ensure smooth movement. The drive system also delivers high acceleration for optimum performance on detail work and small holes.

The Numorex’s key advantage lies in its high degree of automation:

• Multi-carriage oxy-fuel torches allow simultaneous congruent or mirrored oxy-fuel cutting for high throughput capacity
• Automatic capacitive height control guarantees a constant height between the plate and the torch ensuring perfect cut quality
• Automatic proportional valve gas controls make cutting setup fast and easy through the Vision T5’s touch screen interface
• Individual and automatic flame ignition per carriage eliminates manual ignition
• Solenoid valves for each carriage automatically reduce gas consumption by switching the torches on and off as needed
• Automatic flame-check monitoring detects potential ignition failure and automatically restarts the ignition sequence
• A range of oxy-fuel bevelling heads cover the full scope of bevel angles
• Various robust and precise plasma bevelling heads are available, allowing cutting of any shape many times faster than the oxy-fuel process.

The Numorex is designed to integrate:

• Under-water plasma equipment to reduce fumes, noise and ultra-violet emissions
• Dry plasma units to enable higher productivity
• Precision plasma for laser-like cut quality
• Marking tools for powder, punch, arc marker and inkjet marking that allow marks to be produced in fully-automatic mode before cutting

The solid ERGOSTAR EXA can be equipped with up to six oxy-fuel torch carriages. Due to its special design, the machine is remarkably versatile and flexible. Its concept renders the ERGOSTAR EXA fit for future production challenges.The ERGOSTAR EXA can be used for numerous cutting tasks – oxy-fuel or combined oxy-fuel and plasma. The machine offers the greatest versatility covering a broad range of cutting tasks.A low-level main beam with precision guides, supported by lateral panels with perfectly positioned running wheels provide the machine with maximum stiffness. Both lateral panels are mounted below the cutting table height. This allows for ease of loading and unloading of the table with fork-lift trucks and minimizes risk of collision with the machine. The transverse and longitudinal driving system with AC drives offers highest accuracy throughout the hole cutting area for all processes.

Compact Cutting SolutionCrossbow HD is a compact machine, ideal for small fabrication shops, maintenance and repair shops, trade schools. It can even be disassembled and transported to remote job sites.
Economical Cutting SolutionAutomated functions and a user friendly CNC provide powerful, versatile, oxy-fuel or plasma processing in a value-minded package. Precision guide rail enables stable motion of the crossbeam and full support of the cutting torch for accurate, reliable performance. Precision linear rails minimise vibration during cutting to ensure accurate cutting over the entire working envelope.
Flexible Process SolutionCrossbow can be equipped with plasma, oxy-fuel, or both. With plasma, cut mild steel or aluminium up 20 mm, or stainless steel up to 15 mm. Using oxy-fuel, cut mild steel up to 100 mm thick. It's simple, menu-driven interface makes operation easy to learn and use. The CNC features a comprehensive library of 24 common shapes which minimise programming and set-up time. Dimensions are easily edited to create custom shapes without additional programming. Custom programs are supported through basic M-and G-Code programming, and off-line programmed NC files can be transferred to the machine using a standard USB connection.
